RoPE: Incorporating Token Positions into Attention

In the previous article, we explored how Core Attention computes scores between tokens using Q and K, then gathers V using weights derived from those scores. In this article, we will examine RoPE (Rotary Position Embedding), which incorporates token positions into this computation. It rotates the components of Q and K according to their positions, so that position differences are reflected when the two vectors are compared.

How is position reflected in the computations so far?

In the decoder block we have explored so far, RMSNorm, MLP, and residual addition are applied independently to each token. Within Attention, Q, K, and V projections and the output projection also transform components of the same token. Core Attention is where vectors from different tokens are compared and their information is gathered. Within it, QKᵀ computes scores between tokens, and PV computes a weighted sum of their Value vectors.

The dot product of Q and K multiplies corresponding components of the two vectors and adds the products. The dot-product calculation itself has no term that directly specifies where the two tokens are or how many positions apart they are. If the same Q and K are used unchanged, their dot product is the same wherever they are placed.

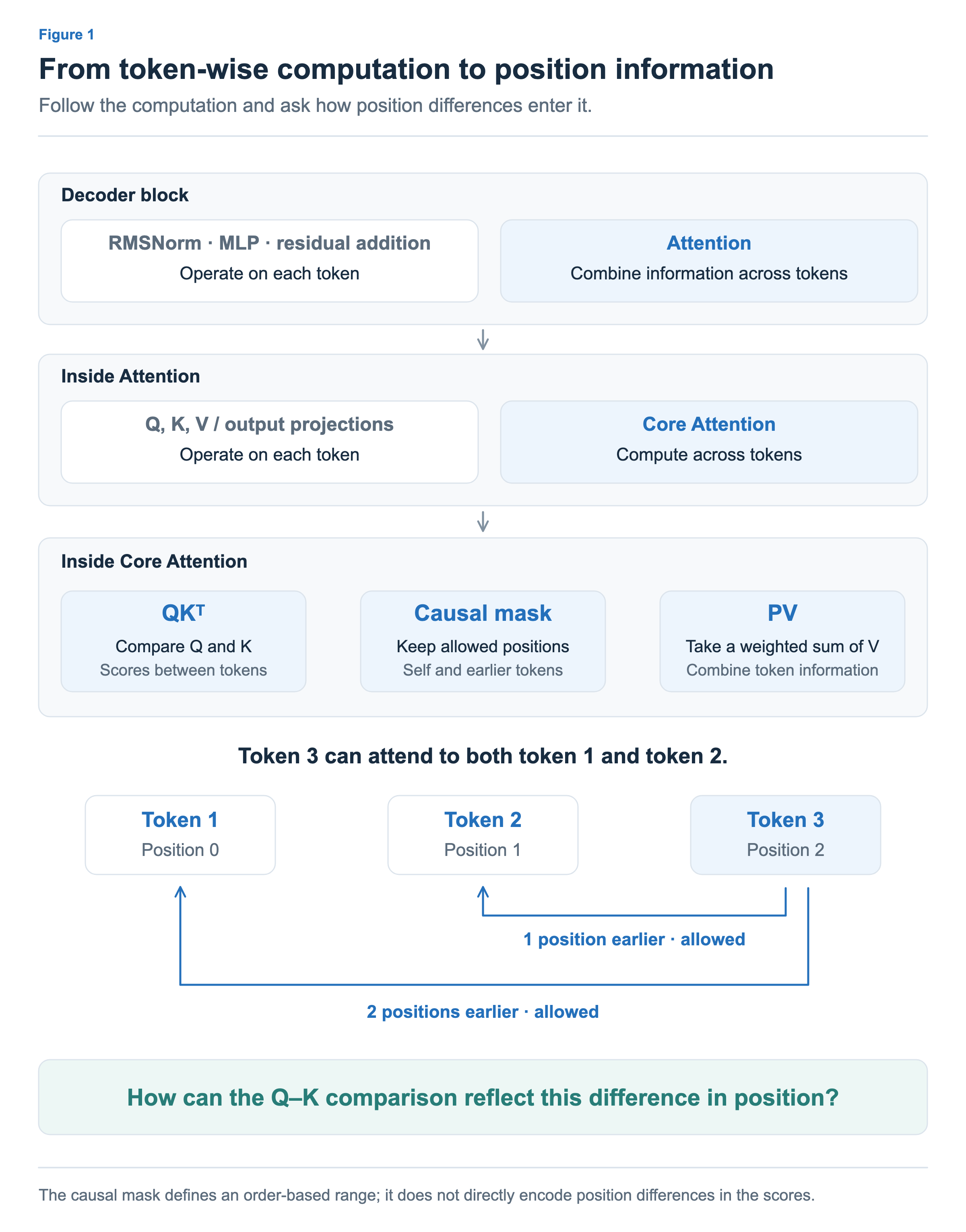

The causal mask defines which positions can be attended to based on their order. In Figure 1, token 3 can attend to both tokens 1 and 2, but token 1 is two positions earlier and token 2 is one position earlier. The mask allows both positions; it does not directly encode position differences in the scores. RoPE is a way to incorporate these differences into the comparison of Q and K.

RoPE is applied to Q and K

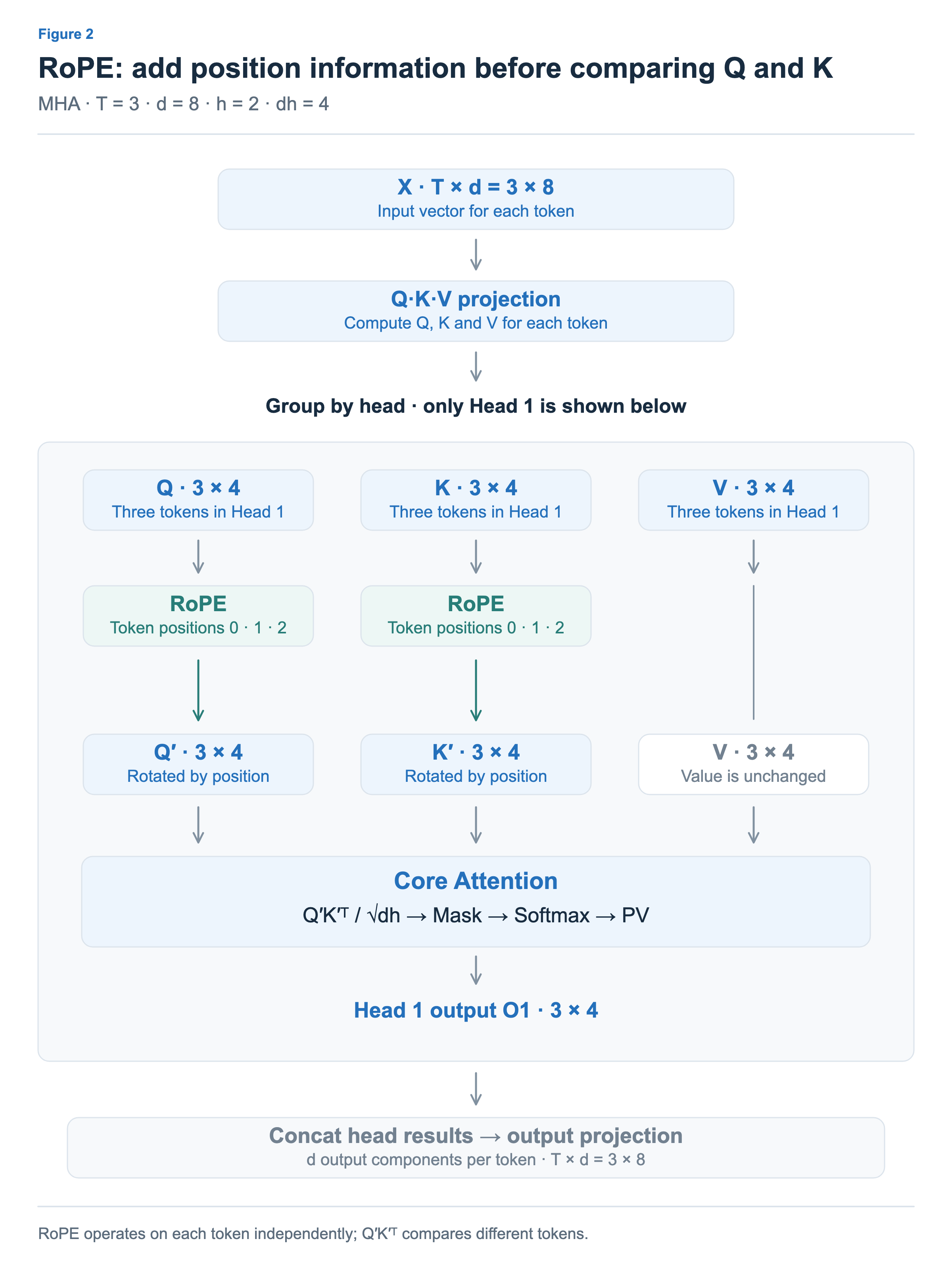

RoPE is applied before Q and K produced by the projections are multiplied. As in the previous article, we will use an MHA configuration with T = 3 tokens, model dimension d = 8, and h = 2 heads. Each head has dimension dh = 4, and its Q, K, and V each have shape 3 × 4. Figure 2 focuses on Head 1.

We will count positions from zero: token 1 is at position 0, token 2 at position 1, and token 3 at position 2. Let Q′ and K′ denote the results of transforming each token’s Q and K according to its own position. RoPE preserves the vector dimension dh, and it is not applied to V. Core Attention then computes scores using Q′ and K′ and gathers V using weights derived from those scores.

RoPE itself does not retrieve another token’s vector. It uses only each token’s Q or K and that token’s position, and the same procedure applies to the other heads. The position-dependent transformation is performed independently for each token; the transformed vectors are compared in Q′K′ᵀ.

Rotating a pair of components

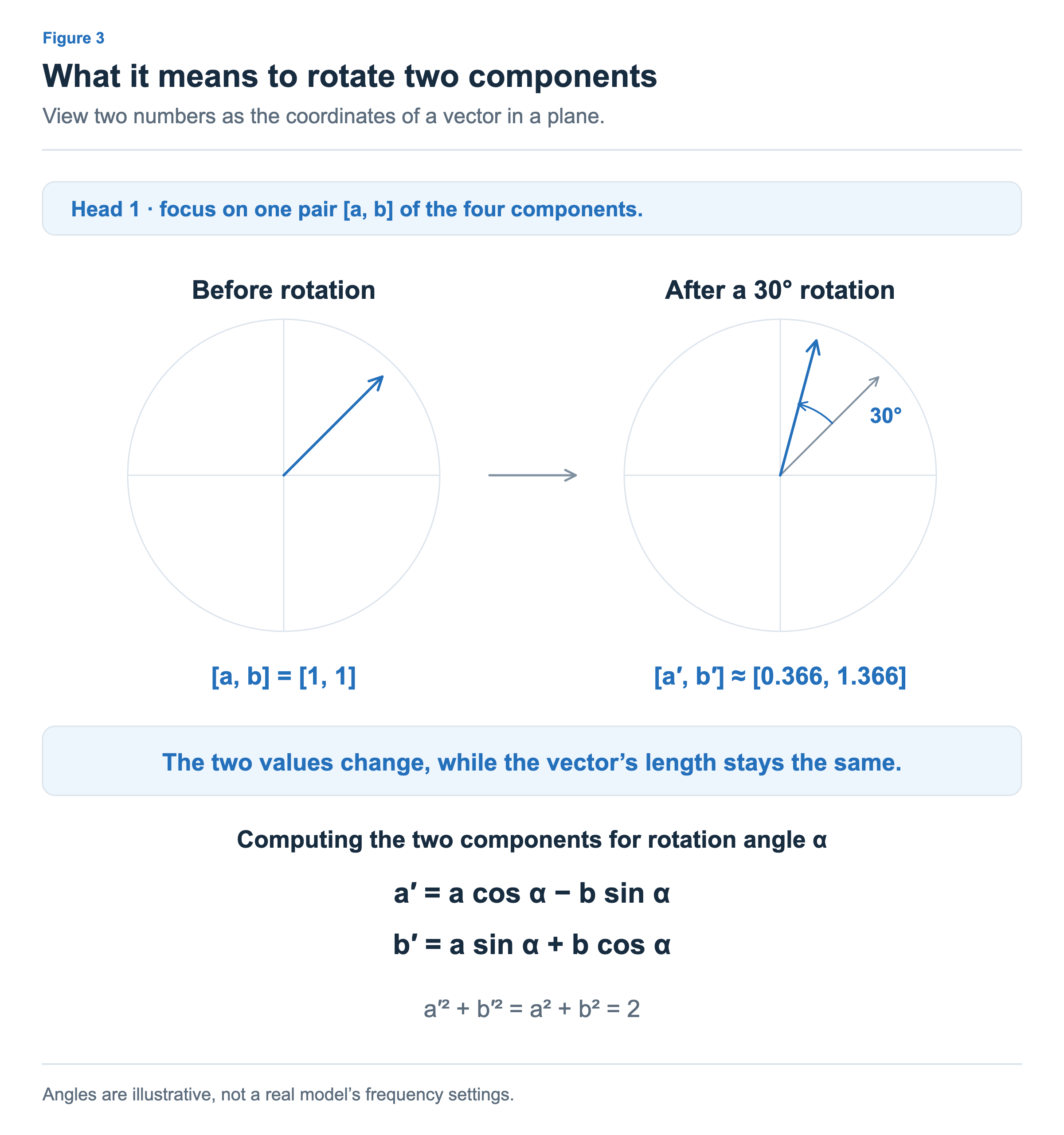

What does it mean to rotate a vector? RoPE groups the components of a head’s vector into pairs and treats each pair as the coordinates of a vector in a plane. In our dh = 4 example, the four components form two pairs. Figure 3 focuses on one of them: [a, b] = [1, 1].

Rotating this vector by 30° changes its components to approximately [0.366, 1.366]. Rotation changes the two component values but preserves the vector’s length. The computation combines the original components using the cosine and sine of the rotation angle. As shown in Figure 3, the first output is a cos α − b sin α, and the second is a sin α + b cos α. The 30° angle in the figure was chosen to make the change easy to see.

Choosing the rotation angle by token position and component pair

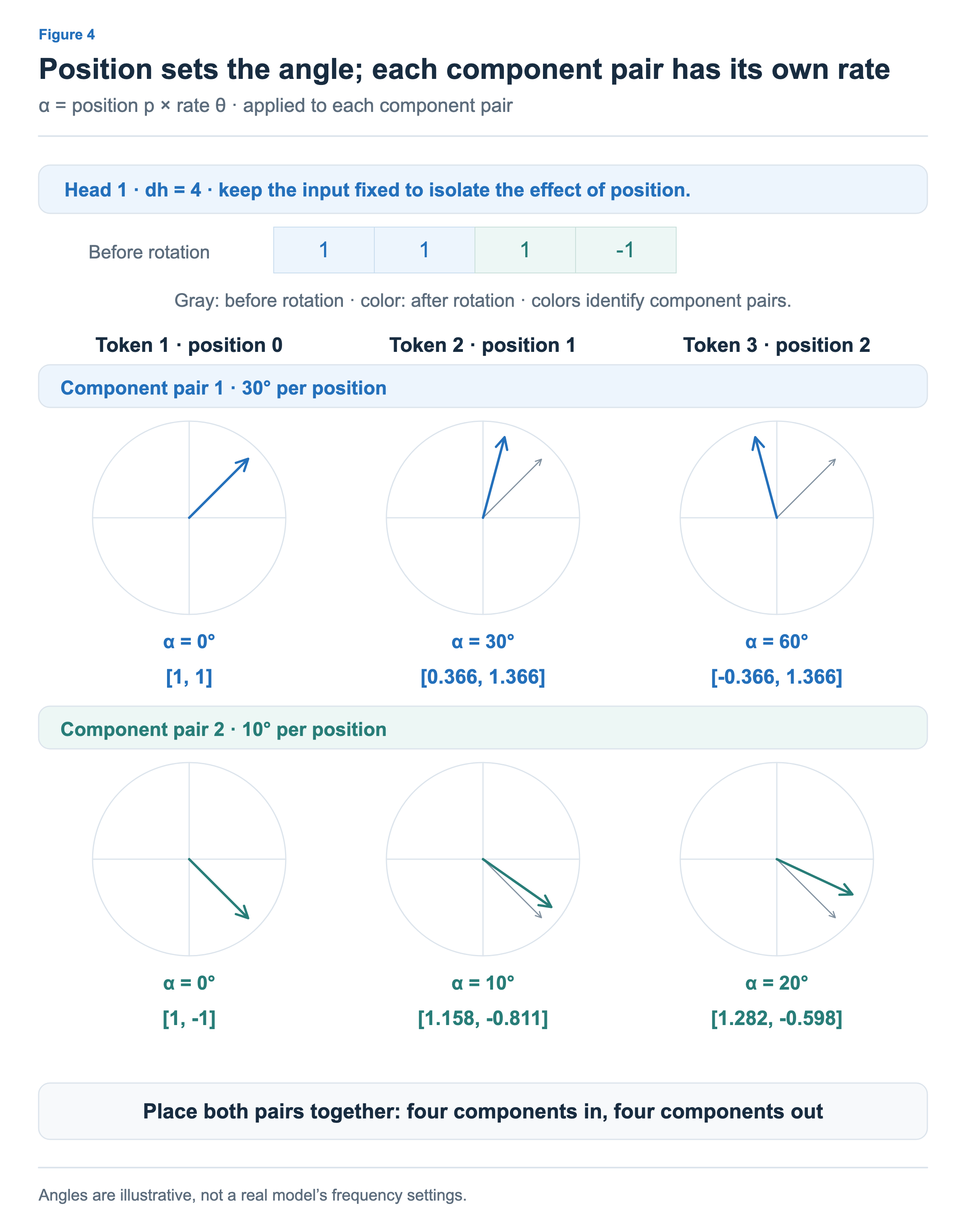

RoPE determines its rotation angles from the token position and the rotation rate of each component pair. For a given pair, moving one position forward adds a fixed angle to its rotation. Different component pairs within a vector have different rotation rates. To illustrate this distinction, Figure 4 uses 30° per position for the first pair and 10° per position for the second.

Token 1 is at position 0, so both pairs have a rotation angle of 0°. Token 2 is at position 1, so the angles are 30° and 10°; token 3 is at position 2, so they are 60° and 20°. Blue and green distinguish two component pairs within the same head, rather than different heads. The figure holds the input fixed to compare only the effect of position.

Basic RoPE defines the rotation rate of each component pair using the following formula. Here, dh is the dimension of the head vector being rotated, and the pair index i runs from 0 to dh/2 − 1. B is the base that determines the distribution of rotation rates; the original RoPE paper uses 10,000.

$${\theta }_i=B^{-\frac{2i}{d_h}}$$

θᵢ is the additional rotation angle applied to component pair i for each step forward in position, measured in radians. For example, with dh = 4 and B = 10,000, θ₀ for the first pair is 1, and θ₁ for the second pair is 0.01. The figure’s 30° and 10° are illustrative values, not the values from this configuration. The angle applied at token position p is:

$${\alpha }_{p,i}=p{\theta }_i$$

For component pair i of Q or K, written as [a, b], we substitute this angle into the rotation formula from Figure 3. Written as a matrix multiplication, it becomes the following. The token position p determines how far to rotate, and the pair index i determines which rotation rate to use.

$$\left[\begin{array}{c}\mathrm{a\prime }\\ \mathrm{b\prime }\end{array}\right]=\left[\begin{array}{cc}\cos \left(p{\theta }_i\right)& -\sin \left(p{\theta }_i\right)\\ \sin \left(p{\theta }_i\right)& \cos \left(p{\theta }_i\right)\end{array}\right]\left[\begin{array}{c}a\\ b\end{array}\right]$$

Rotating by absolute position, comparing by relative position

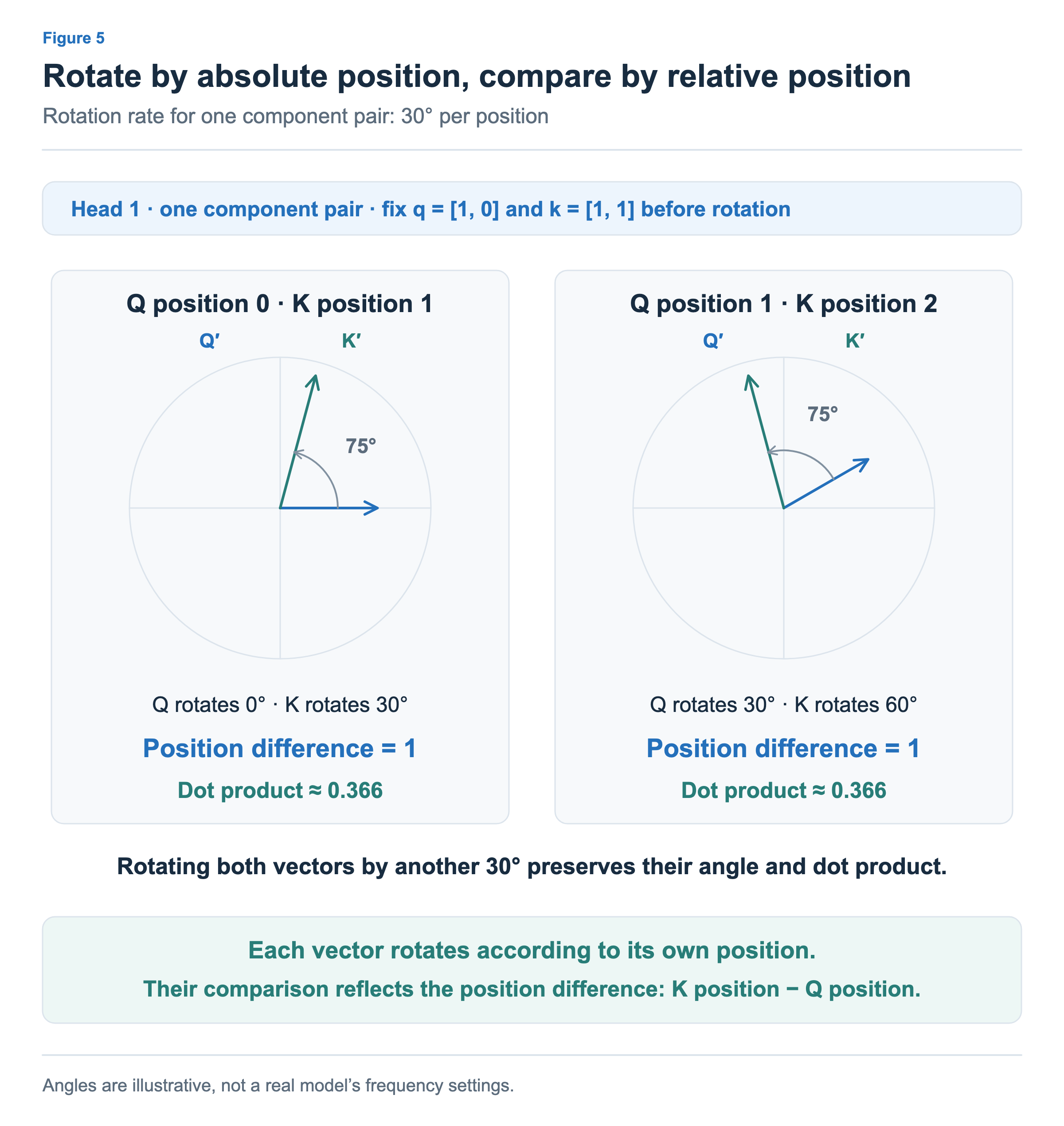

Each vector is rotated according to its own position, so how does the difference between two token positions enter the comparison? Figure 5 compares two cases with the same Q and K before rotation. For one component pair, Q is [1, 0], K is [1, 1], and the rotation rate is 30° per position. Here we consider only the position-dependent rotations and dot products, before applying a mask.

On the left, Q is at position 0 and K at position 1, so their rotations are 0° and 30°. On the right, Q is at position 1 and K at position 2, so their rotations are 30° and 60°. The right-hand case is the result of rotating both vectors on the left by another 30°. Rotating both vectors by the same angle changes their individual directions but preserves the angle between them. Their lengths are also preserved, so the dot product is approximately 0.366 in both cases.

The token positions differ by one in both cases. On the left, K position − Q position = 1 − 0 = 1; on the right, it is 2 − 1 = 1. For component pair i, the difference between the applied rotation angles is also the same: (K position − Q position) × θᵢ. RoPE rotates each vector according to its absolute position, but the positional effect on their dot product takes this relative form. The same principle applies to the full Q–K dot product, which sums the dot products of all component pairs.

Position information changes Attention scores

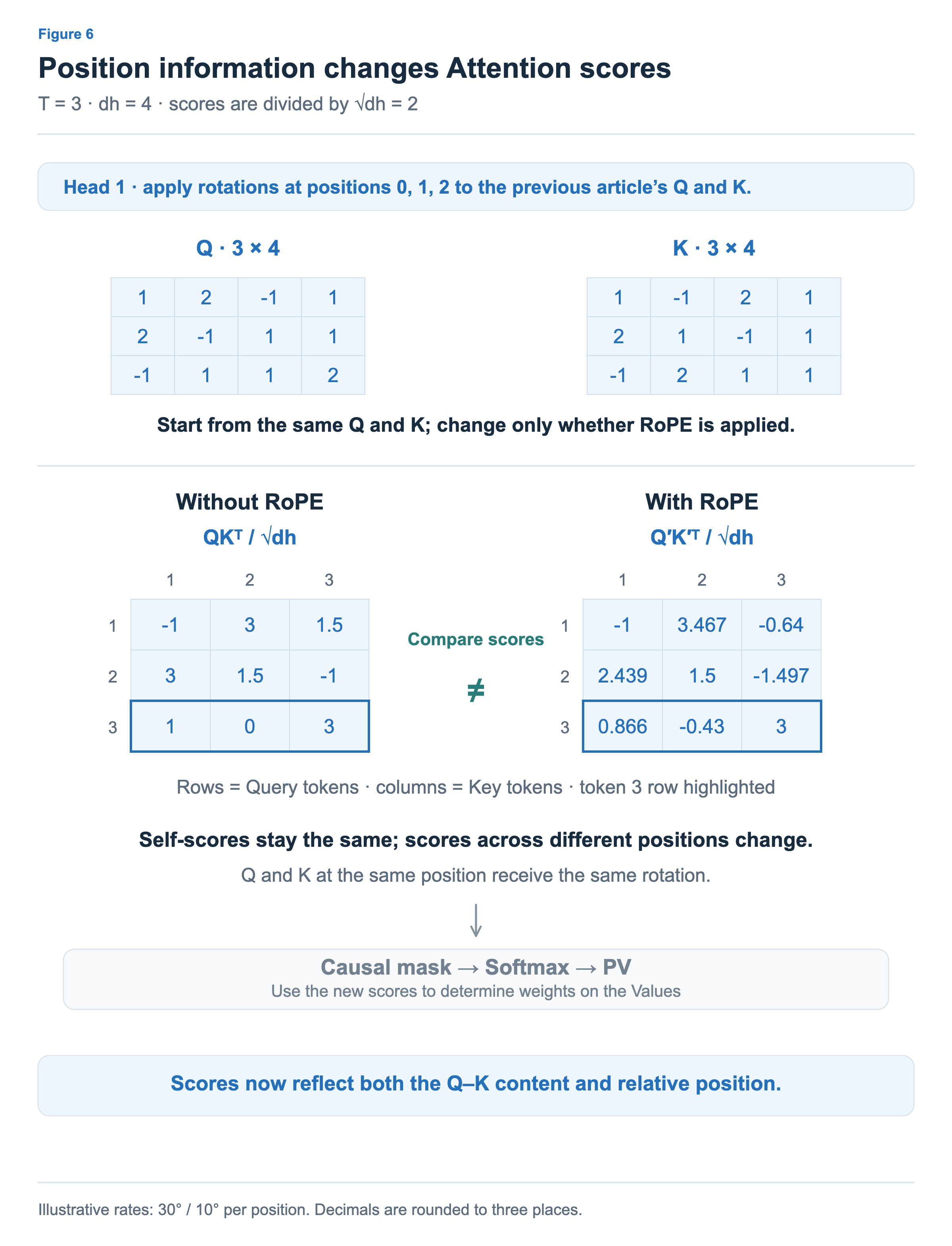

Let us return to the Q and K used in the previous article. Figure 6 compares scores before and after applying RoPE to the same Q and K. The token positions are 0, 1, and 2, using the same illustrative rotation rates of 30° and 10° as in Figure 4. In both score matrices, each dot product is divided by √dh = 2.

For token 3, the score row changes from [1, 0, 3] to approximately [0.866, −0.430, 3]. The first two values are scores against tokens 1 and 2, and the last is the score against itself. Q and K at the same position receive the same rotation, so the self-score is preserved. Q and K at different positions receive different rotation angles, changing those scores in this example.

The remaining computation is the same as in the previous article. The causal mask limits which tokens can be attended to, Softmax computes weights, and V is aggregated with those weights. V itself is unchanged, but the scores computed from Q and K with position information determine how much each Value contributes.

RoPE groups each token’s Q and K components into pairs and rotates them according to position. The input and output dimensions stay the same, and the rotation itself is computed independently for each token. Comparing the transformed Q and K makes both their content and the relative position of the two tokens contribute to the Attention score.
